JC-WS Excircle Type Roller Burnishing Tool
Product Introduction
JC-WS series tools are more suitable for use on machine tools which length limitation, and the tool can burnish diameter Φ3-14mm. When the diameter of the clamping handle is enough, the machining length will be unlimited because the inner hole of the clamping handle is larger than the workpiece size.
Product Data
| Model |
Regulating component, Diameter and adjustment range
|
Length of Tool/L | Shank | Inner Hole of Shank | |

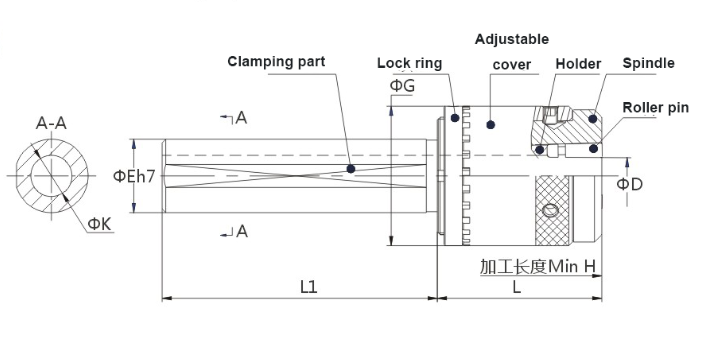

| ΦD | ΦG | a | L | ΦE×L1 | ΦK |
| Φ3-Φ7 | WS1/28 |
+0.05
-0.15
|
45 | Φ16*60 | Φ8 |
| Φ8-Φ11 | WA2/38 | Φ20*75 | Φ12 | ||
| Φ12-Φ14 | WS3/41 | 50 | Φ25*75 | Φ15 | |
Product Display
